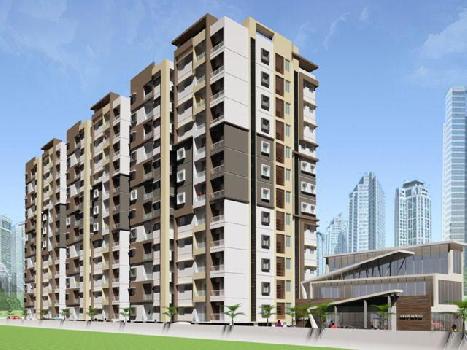

Williston Signature

Jalahalli West, Bangalore

About Williston Signature

Foundation : Earthwork excavation for frame structure with column, foundation up to a minimum depth of 5’0”, Rubble size stone masonry spread foundation in CM1:8 of minimum ht of 6’0”placed over P C C 1:4:8 bed concrete of 6’0” Thick. And plinth concrete over spread foundation of 5’0”th. Without reinforcement.

Super Structure : All main load bearing walls will be of BBM, in CM1:5 of 9”width up to a minimum ht of 10’0” and all partition walls using table molded bricks in CM1:5 of 4.5” thick with necessary concrete bands for bonding up to a required ht.

R.C.C Works : All R.C.C works such as lofts, Chejja’s, Pillars, Roof, Staircase etc. shall be laid in CC 1:2:4 mix using 43 to 53 grade cement of Birla super, ACC Surakksha, L&T, Coramendel, Zuari etc. The Reinforcement for all concrete works shall be of ISI brand, tor steel laid to specification in different size and dimension.

Plastering : All the internal walls and ceilings will be plastered using 43 or 53 grade cement of any of the above mentioned makes with lime rendering. The external wall be of sponge finish with required amount of curing.

Flooring : Living Room, Dining, of floor shall be Scotch buff 20mm laid with , the skirting height shall be 3” from ffl .Rest of the room shall be laid with 24”X24” Vitrified tiles with necessary amount of curing and polishing.

• Family Lounge, of all floors shall be laid with36”X36” Granite of with necessary amount of curing and polishing, the skirting shall be of 3” height from ffl. Rest of the rooms also shall be laid with 24”X24” Vitrified tiles with necessary amount of curing and plastering.

Bathroom Flooring and Dadoing : The bathroom floor will be of Machine cut Sera stone. Quality glazed tiles for all walls till 7’0”ht. from ffl.

NOTE: The max cost of the dadoing tiles should not exceed rupees thirty five.

• Wall above the kitchen counter i.e. @ 33” above ffl to 57” shall be cladded with quality glazed tiles.

Doors & Windows :

• Main Door - Teak wood frame with modular shutter wooden door frame / shutter melamine polish & bras fittings.
• Other Doors: Hard wood frame, flush shutters with enamel paint & SS fittings.
• Aluminium / UPVC sliding windows. Three track frame with glass in two tracks and mosquito mesh provision.

Painting : All the Internal walls shall be painted with Enamel of Asian, Berger or Nerolac paints company makes, ceiling with Distemper. The External walls shall be finished with cement based Snowcem paint with required amount of curing.

Wooden Joinery : Main Entrance Door shall be Burma Teak wood with a frame of 3”x5” and 1 ½ Thick. Door, the panel design shall be as prescribed by the client. Accessory fittings shall be of brass with the basic requirement.

• All other Doors specified as per drawing shall be of quality hard wood of Honnee with frame thickness of 2 ½ x4” and 1” Thick. Flush Doors, the fittings to be fitted shall be powder coated hinges, Aldrop, handle on each side of the shutter, metal fittings tower bolts and a stopper.

Windows : The windows as specified in the plan shall be 3 track Jindal make, powder coting shutter with the 6 mm glass, MS grills with necessary Hard.

Fabrication : Main gate, Stair case railings, checkered grill work for utility passage etc. shall be fabricated with the suitable material based on the design approved by the client. Stair case steps with 12 mm Sadarhalli Granite.

Granite top for Kitchen Counter : The counter shall be of 20mm thick. Black water cut Granite slab. The front edge shall be made 40mm Thick. By adding a strip of 20mm Thick. Granite all around with top and bottom edges rounded.

Plumbing & Sanitary Connections : All the GI pipes shall be of Surya Prakash make, sanitary pipes of Prince or Supreme company make, sanitary wares of Hindustan Cera make, fitting of Escco make of stainless steel finish.

Electrical : Wiring shall be of Cauvery, Finolex or Jhonson company make. Switches of Anchor or Lisha Leon makes.

Elevation : 10 mm Rough Granite to be fixed as per required.
